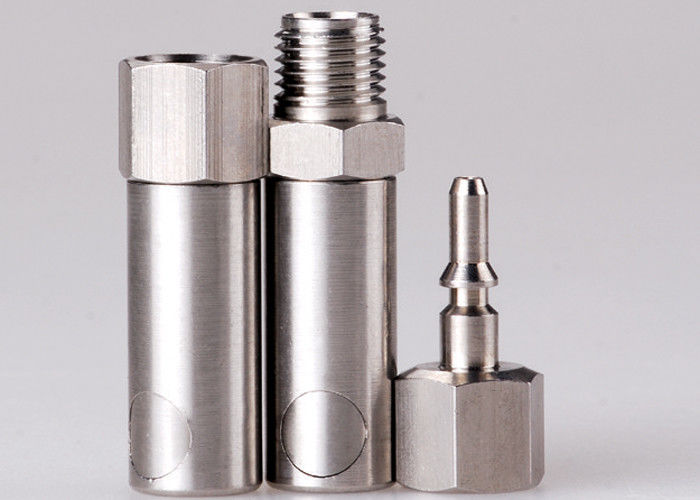

Semi - Automatic Hydraulic Quick Release Coupling Press Button LSQ-AN In SS304

China Semi - Automatic Hydraulic Quick Release Coupling Press Button LSQ-AN In SS304 supplier

Large Image :  Semi - Automatic Hydraulic Quick Release Coupling Press Button LSQ-AN In SS304

Product Details:

Place of Origin: Ningbo, China(Mainland)
Brand Name: SONGQIAO
Model Number: LSQ-AN

Payment & Shipping Terms:

Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests
Delivery Time: within 30 days or as per customers' requirement
Supply Ability: 50,000 pcs/day, according the capacity of the assembly workshop
Contact Now
Detailed Product Description
Standard: Compatible With Chinese Standard WP: Working Pressure To 870 Psi (60 Bar)
Material: SS304 Size: 1/4
Thread: BSPP, BSPT, NPT, NPTF, SAE Connection: Locking Balls

LSQ-AN, Press Button, Semi-Automatic Type, Hydraulic Quick Relaese Couplings in SS304



Descripton:

LSQ-AN press button semi-automatic type quick coupling(stainless steel)
→ Features: Single handed operation press botton type.
→ Advantages: Single handed insert directly into coupling. Press button to disconnect, it suitable used in restricted space.
→ Application: Oil, Chemical line.
→ Working pressure:6Mpa.
→ Working temperature: -20℃ to +120℃

Semi - Automatic Hydraulic Quick Release Coupling Press Button LSQ-AN In SS304



PARTNO. LS ¢D HEX1 A T d
LSQ-AN-02SF 53.5 16.6 17 11.5 G1/4 ¢3


Semi - Automatic Hydraulic Quick Release Coupling Press Button LSQ-AN In SS304

PARTNO. LS ¢D HEX1 A T d
LSQ-AN-02SM 58.3 16.6 17 12.5 M14*1.5 ¢3


Semi - Automatic Hydraulic Quick Release Coupling Press Button LSQ-AN In SS304

PARTNO. LP C HEX2 A T d
LSQ-AN-02PF 38 23.2 17 11.5 G1/4 ¢2.5
