Product Details
Place of Origin: Ningbo,China(Mainland)
Brand Name: SONGQIAO
Model Number: LSQ-S8
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests.
Delivery Time: within 30 days or as per customers' requirement.
Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop
Standard: |
ISO 7241-1 Series “B”, Poppet Valve |
WP: |
Working Pressures To 1,000 Psi (69 Bar) |
Material: |
Brass |
Size: |
1/4' - 1' |
Thread: |
BSPP, BSPT, NPT, NPTF, SAE |
Connection: |
Locking Balls |
Standard: |
ISO 7241-1 Series “B”, Poppet Valve |
WP: |
Working Pressures To 1,000 Psi (69 Bar) |
Material: |
Brass |
Size: |
1/4' - 1' |
Thread: |
BSPP, BSPT, NPT, NPTF, SAE |
Connection: |
Locking Balls |

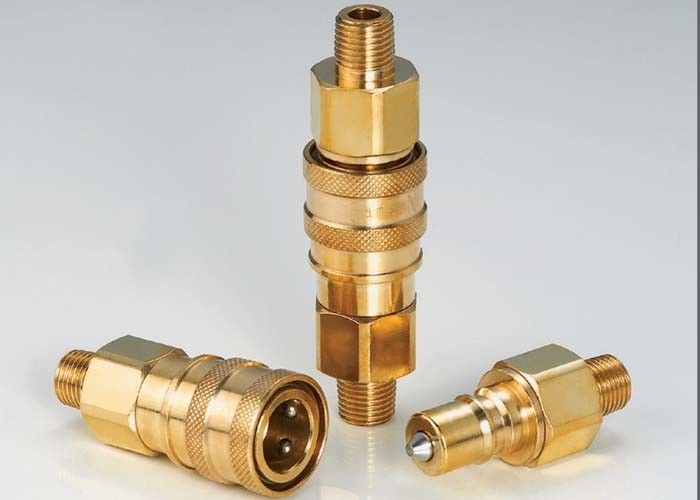

LSQ-S8, ISO7241-B Hydraulic Couplings in Male Thread, Brass
Descripton:
LSQ-S8 medium-pressure high performance pneumatic and hydraulic quick coupling(BRASS)
Applications:LSQ-S8 couplings,are used across the spectrum of hydraulic applications,These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment,and a loss of fluid is undesirable.LSQ-S8 are used on construction Equipment,forestry equipment,agricultural Machinery,oil tools,steel mill machinery,and other demanding hydraulic applications.
Specifications
| Body Size(in) | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
| Rated Pressure(PSI) | 1000 | 1000 | 1000 | 1000 | 1000 |
| Rated Flow(GPM) | 3 | 6 | 12 | 28 | 50 |
| Temperature Range | -20℃ to +120℃ | ||||
| Stander seal material | NBR | ||||
LSQ-S8 Series Couplings feature:
1. Poppet valves available to prevent uncoupled leakage.
2. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3. Dependable ball-locking mechanism holds the mating halves together.
4. Socket and plug are precision machined from solid bar stock.
5. LSQ-S8 series conforms to the standard of ISO 7241-B.
6. Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series
| ISO | PARTNO. | LS | ￠D | HEX1 | A | T |
| 6.3 | LSQ-S8-02SM | 62.5 | 27 | 22 | 13 | ZG1/4 NPT1/4 |
| 10 | LSQ-S8-03SM | 68.5 | 35 | 27 | 13 | ZG3/8 NPT3/8 |
| 12.5 | LSQ-S8-04SM | 77.5 | 45 | 30 | 16 | ZG1/2 NPT1/2 |
| 20 | LSQ-S8-06SM | 93.5 | 54 | 36 | 18 | ZG3/4 NPT3/4 |
| 25 | LSQ-S8-08SM | 98 | 64.5 | 41 | 20 |
ZG1 NPT1 |
| ISO | PARTNO. | LP | d | C | HEX2 | A | T |
| 6.3 | LSQ-S8-02PM | 53 | 14.2 | 22.5 | 22 | 13 | ZG1/4 NPT1/4 |
| 10 | LSQ-S8-03PM | 55.5 | 19 | 25 | 27 | 13 | ZG3/8 NPT3/8 |
| 12.5 | LSQ-S8-04PM | 64.5 | 23.5 | 28 | 30 | 16 | ZG1/2 NPT1/2 |
| 20 | LSQ-S8-06PM | 74.5 | 31.4 | 36 | 36 | 18 | ZG3/4 NPT3/4 |
| 25 | LSQ-S8-08SM | 78 | 37.8 | 40 | 41 | 20 | ZG1 NPT1 |
| ISO | PARTNO. | L | ￠D | HEX1 | HEX2 | T |
| 6.3 | LSQ-S8-02 | 94 | 27 | 22 | 22 | ZG1/4 NPT1/4 |
| 10 | LSQ-S8-03 | 99 | 35 | 27 | 27 | ZG3/8 NPT3/8 |
| 12.5 | LSQ-S8-04 | 115.5 | 45 | 30 | 30 | ZG1/2 NPT1/2 |
| 20 | LSQ-S8-06 | 133 | 54 | 36 | 36 | ZG3/4 NPT3/4 |
| 25 | LSQ-S8-08 | 136.5 | 64.5 | 41 | 41 | ZG1 NPT1 |
