Carbon Steel Hydraulic Quick Connect Couplings KJ Close Type Chrome Three Or Six

Product Details

Place of Origin: Ningbo, China(Mainland)

Brand Name: SONGQIAO

Model Number: KJ

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: standard exporting package or as per customers' requests

Delivery Time: within 30 days or as per customers' requirement

Supply Ability: 50,000 pcs/day, according the capacity of the assembly workshop

Get Best Price
High Light:

hydraulic quick coupler

,

hydraulic line quick connect

Standard:
Compatible With Chinese Standard
WP:
Working Pressure To 4565 Psi (315 Bar)
Material:
Carbon Steel
Size:
M16*1.5-M68*2
Thread:
Metric
Connection:
Locking Balls
Standard:
Compatible With Chinese Standard
WP:
Working Pressure To 4565 Psi (315 Bar)
Material:
Carbon Steel
Size:
M16*1.5-M68*2
Thread:
Metric
Connection:
Locking Balls

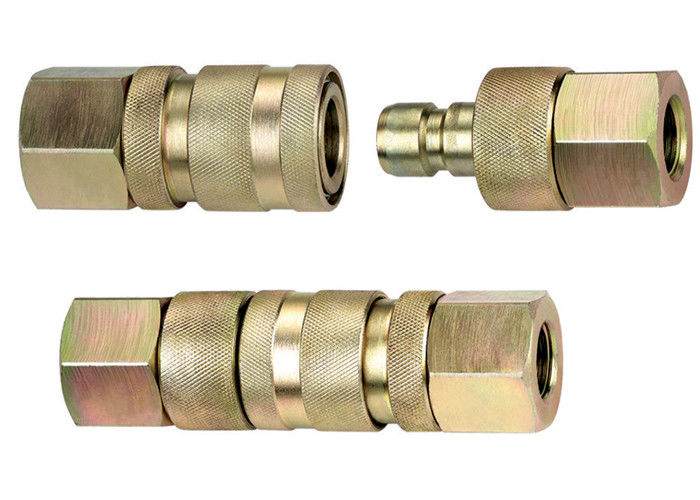

Carbon Steel Hydraulic Quick Connect Couplings KJ Close Type Chrome Three Or Six

KJ Chinese Type Hydraulic Couplings in Carbon Steel, Chrome Three or Six



Descripton:

KJ close type hydraulic quick coupling(steel)
Application and Features: These coupling be adequate for dielectric situation with engine oil, water and air; nominal pressure 32Mpa,medium temperature-20℃ to +120℃.



Path(D) Working pressure(MPa) Screw thread(T)
6.3 31.5 M16*1.5 ZG1/8
10 31.5 M18*1.5 ZG1/4
12.5 31.5 M27*1.5 ZG3/8
20 25 M30*1.5 ZG1/2
25 25 M33*2 ZG3/4
31.5 20 M52*2 ZG1
40 16 M60*2 ZG1-1/4
50 16 M68*2

ZG1-1/2
