Steel Hydraulic Quick Connect Couplings , TEMA TH Type Quick Disconnect Hydraulic

China Steel Hydraulic Quick Connect Couplings , TEMA TH Type Quick Disconnect Hydraulic supplier

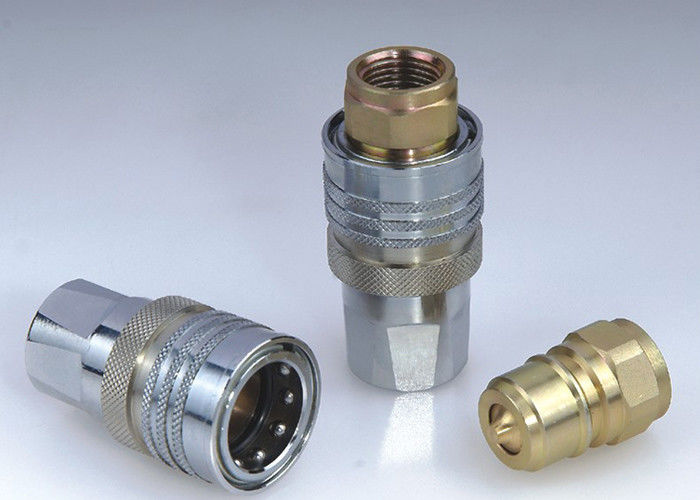

Large Image :  Steel Hydraulic Quick Connect Couplings , TEMA TH Type Quick Disconnect Hydraulic

Product Details:

Place of Origin: Ningbo, China(Mainland)
Brand Name: SONGQIAO
Model Number: LSQ-TM

Payment & Shipping Terms:

Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests
Delivery Time: within 30 days or as per customers' requirement
Supply Ability: 50,000 pcs/day, according the capacity of the assembly workshop
Contact Now
Detailed Product Description
Standard: Compatible With TEMA TH Series WP: Working Pressure To 3000psi (207 Bar)
Material: Carbon Steel Size: 1/2"-1"
Thread: BSPP, BSPT, NPT, NPTF, SAE Connection: Locking Balls

LSQ-TM, TEMA TH Type, Hydraulic Couplings in Carbon Steel, Chrome Three



Descripton:

LSQ-TM close type hydraulic quick coupling(steel)
Applications: The LSQ-TM Series brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.



Specifications:

Body Size(in) 1/2 3/4 1
Rated Pressure(PSI) 3000 3000 3000
Rated Flow(GPM) 12 28 50
Temperature Range(std seals) -20℃ to +120℃
Standard seal NBR



LSQ-TM Series couplings feature:
1. Poppet valves available to prevent uncoupled leakage.
2. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3. Critical parts are hardened for durability.
4. Dependable ball-locking mechanism holds the mating halves together.
5. Socked and plug are precision machined from solid bar stock.
6. Compatible with TEMA TH5000 Series.



Performance: Test Fluid:Oil-200SUS,1GPM=3.78L/Min,1PSID=0.0069MPa
Steel Hydraulic Quick Connect Couplings , TEMA TH Type Quick Disconnect Hydraulic
TPL series (1/2")
Steel Hydraulic Quick Connect Couplings , TEMA TH Type Quick Disconnect Hydraulic

PARTNO. T ¢D HEX1 HEX2 L LS LP
LSQ-TM-04 G1/2 40 S30 S27 83.4 66.7 41.5
LSQ-TM-06 G3/4 52 S38.3 S36 94.5 76.4 47
LSQ-TM-08 G1 62 S45 S45 113.8 92.4

56.5
