Widely Applied Threaded Quick Connect LSQ-CVV With Good Sealing Property

China Widely Applied Threaded Quick Connect LSQ-CVV With Good Sealing Property supplier

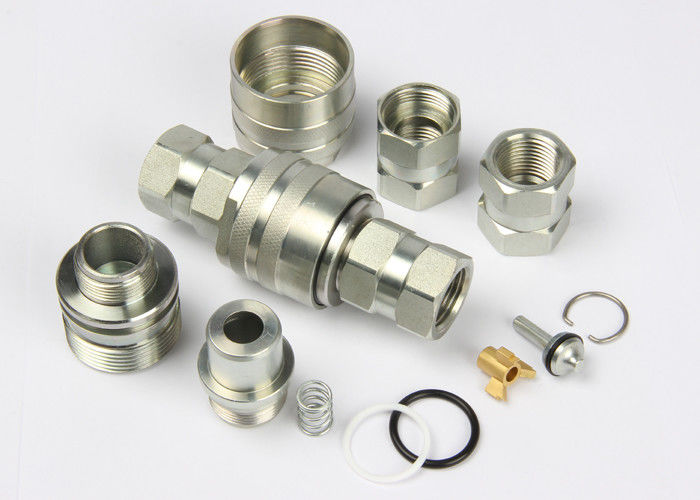

Large Image :  Widely Applied Threaded Quick Connect LSQ-CVV With Good Sealing Property

Product Details:

Place of Origin: Ningbo,China(Mainland)
Brand Name: SONGQIAO
Model Number: LSQ-CVV

Payment & Shipping Terms:

Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests.
Delivery Time: within 30 days or as per customers' requirement.
Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop
Contact Now
Detailed Product Description
Standard: Compatible With FASTER CVV Series, Thread Locked WP: Working Pressures To 5,000 Psi (345 Bar)
Material: Carbon Steel Size: 1/4' - 1'
Thread: BSPP, BSPT, NPT, NPTF, SAE Connection: Thread Lock

LSQ-CVV Threaded Connection Type, Faster CVV Interchange, Hydraulic Connect Couplings in Carbon Steel, Chrome Three



Descripton:



Applications
LSQ-CVV Series widely used in equipments(excavators),vehicles,hydraulic equipments,drilling machines.

Sepecification:
Body Size(in)
1/4
3/8
1/2
3/4
1
Rated Pressure(PSI)
5000
5000
5000
4500
5000
Rated Flow(GPM)
3
6
12
28
50
Temperature Range (std seals)
-20℃ to +120℃
Standard seal material
NBR

Features:
Compatible with FASTER CVV Series STCCHI VD Series.
Widely Applied Threaded Quick Connect LSQ-CVV With Good Sealing Property
Widely Applied Threaded Quick Connect LSQ-CVV With Good Sealing Property
PART NO.
LS
D
HEX1
HEX3
A
T
LSQ-CVV-02SF
58.6
Φ34
S19
S30
13
G1/4 NPT1/4
LSQ-CVV-03SF
60.8
Φ34
S22
S30
13
G3/8 NPT3/8
LSQ-CVV-04SF
67.7
Φ42
S27
S36
18
G1/2 NPT1/2
LSQ-CVV-06SF
73.5
Φ48
S36
S41
18
G3/4 NPT3/4
LSQ-CVV-08SF
94.5
Φ56.5
S41
S51
24.5
G1 NPT1
Widely Applied Threaded Quick Connect LSQ-CVV With Good Sealing Property
PARTNO.
LP
d
HEX2
A
T
LSQ-CVV-02PF
60
M24*2
S19HEX
13
G1/4 NPT1/4
LSQ-CVV-03PF
55.3
M28*2
S22HEX
13
G3/8 NPT3/8
LSQ-CVV-04PF
61.5
M36*2
S27HEX
18
G1/2 NPT1/2
LSQ-CVV-06PF
83.5
M42*2
S36HEX
18
G3/4 NPT3/4
LSQ-CVV-08PF
94.5
M48*3
S41HEX
24.5
G1 NPT1
Widely Applied Threaded Quick Connect LSQ-CVV With Good Sealing Property
PARTNO.
L
D
HEX1
HEX2
HEX3
T
LSQ-CVV-02
92.6
Φ34
S19
S19
S30
G1/4 NPT1/4
LSQ-CVV-03
89.9
Φ34
S22
S22
S30
G3/8 NPT3/8
LSQ-CVV-04
103
Φ42
S27
S27
S36
G1/2 NPT1/2
LSQ-CVV-06
125
Φ48
S36
S36
S41
G3/4 NPT3/4
LSQ-CVV-08
155
Φ56.5
S41
S41
S50
G1 NPT1
