Product Details
Place of Origin: Ningbo,China(Mainland)
Brand Name: SONGQIAO
Model Number: KZE-BA
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests.
Delivery Time: within 30 days or as per customers' requirement.
Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop
Standard: |
Compatible With GROMELLE 6000 Series, Thread Locked |
WP: |
Working Pressures To 10,000 Psi (700 Bar) |
Material: |
Carbon Steel |
Size: |
1/4' - 1' |
Thread: |
BSPP, BSPT, NPT, NPTF, SAE |
Connection: |
Thread Lock |
Standard: |
Compatible With GROMELLE 6000 Series, Thread Locked |
WP: |
Working Pressures To 10,000 Psi (700 Bar) |
Material: |
Carbon Steel |
Size: |
1/4' - 1' |
Thread: |
BSPP, BSPT, NPT, NPTF, SAE |
Connection: |
Thread Lock |
KZE-BA Threaded Connection Type, Gromelle 6000 Interchange, Hydraulic Couplings in Carbon Steel, Chrome Three
Descripton:

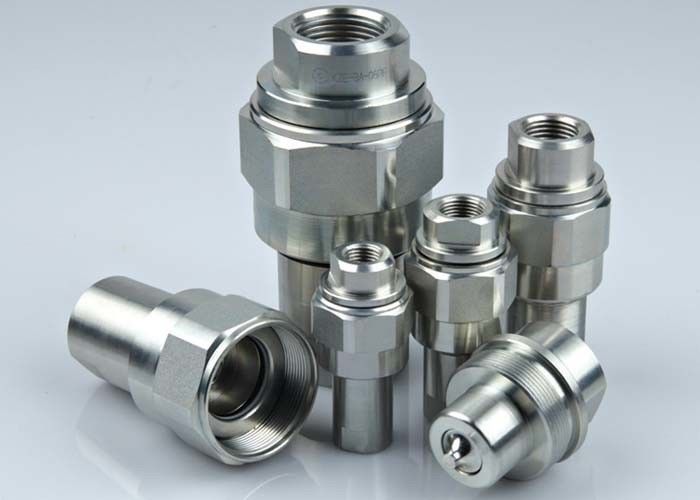

KZE-BA thread locked type hydraulic quick coupling( steel )
Applications
Mobile equipment, agriculture machine and universal industrial equipment.
Features :
New valve design, it can resistance damage from high flow and the pressure of impulse that providing advanced performance
Machined from solid steel barstock for durability
The KZE-BA series employs a threaded sleeve locking mechanism, mates with matching male threads on the nipple. The two halves must be manually threaded together form connection.
New chrome plating treatment provides advanced anti-rust performance.
Compatible with GROMELLE 6000 Series and HOLMBURY TGW series.
Specifications:
| Body Size(in) | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
| Rated Pressure(PSI) | 10000 | 10000 | 10000 | 8500 | 6000 |
| Rated Flow(GPM) | 3 | 6 | 12 | 28 | 50 |
| Temperature Range(std seals) | -20℃to+120℃ | ||||
| Standard seal material NBR | |||||
| PART NO. | LS | D | HEX1 | A | T |
| KZE-BA-02SF | 58.9 | S32 | S19 | 13 | G1/4 NPT1/4 |
| KZE-BA-03SF | 66.5 | S36 | S22 | 16 | G3/8 NPT3/8 |
| KZE-BA-04SF | 76.5 | S41 | S27 | 18 | G1/2 NPT1/2 |
| KZE-BA-06SF | 89.5 | S50 | S35 | 20.5 | G3/4 NPT3/4 |
| KZE-BA-08SF | 105.5 | S65 | S41 | 20.5 | G1 NPT1 |
| PART NO. | LP | C | HEX2 | A | T |
| KZE-BA-02PF | 36 | 12.5 | S19 | 13 | G1/4 NPT1/4 |
| KZE-BA-03PF | 40.5 | 16 | S22 | 16 | G3/8 NPT3/8 |
| KZE-BA-04PF | 49 | 17 | S27 | 18 | G1/2 NPT1/2 |
| KZE-BA-06PF | 56 | 19 | S35 | 20.5 | G3/4 NPT3/4 |
| KZE-BA-08PF | 66 | 22 | S41 | 20.5 | G1 NPT1 |
| PART NO. | L | D | HEX1 | HEX2 | T |
| KZE-BA-02 | 72.3 | S32 | S19 | S19 | G1/4 NPT1/4 |
| KZE-BA-03 | 81.5 | S36 | S22 | S22 | G3/8 NPT3/8 |
| KZE-BA-04 | 98.3 | S41 | S27 | S27 | G1/2 NPT1/2 |
| KZE-BA-06 | 112.4 | S50 | S35 | S35 | G3/4 NPT3/4 |
| KZE-BA-08 | 132.9 | S65 | S41 | S41 | G1 NPT1 |
