Close Type Hydraulic Trailer Brake Coupling Metric Thread Preventing Uncoupled Leakage

Good quality Flush Face Hydraulic Quick Couplers for sales
Professional company with nice service and high quality and high reputation. Thank you!

—— Sandy

I'm Online Chat Now

Close Type Hydraulic Trailer Brake Coupling Metric Thread Preventing Uncoupled Leakage

China Close Type Hydraulic Trailer Brake Coupling Metric Thread Preventing Uncoupled Leakage supplier

Large Image :  Close Type Hydraulic Trailer Brake Coupling Metric Thread Preventing Uncoupled Leakage

Product Details:

Place of Origin: Ningbo,China(Mainland)
Brand Name: SONGQIAO
Model Number: LSQ-S10

Payment & Shipping Terms:

Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests.
Delivery Time: within 30 days or as per customers' requirement.
Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop
Contact Now
Detailed Product Description
Standard: Compatible With FASTER VF Series, Poppet Valve WP: Working Pressures To 3,000 Psi (207 Bar)
Material: Carbon Steel Size: 1/2'
Thread: BSPP, Metric Connection: Locking Balls

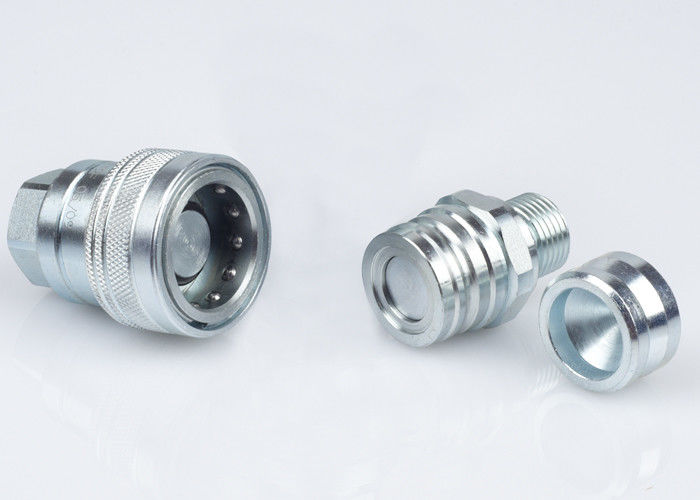

LSQ-S10 Trailer Brake Couplings, Close Type , Hydraulic Quick Connect Couplings



Descripton:

LSQ-S10 close type hydraulic quick coupling(steel)


Applications:

LSQ-S10 Trailer Brake Couplings are used to connect the hydraulic braking system of tractors to their trailers. The male coupling is normally panel mounted on the tractor and is available with metric and BSP threads.



Specifications:

Body Size(in) 1/2
Rated Pressure(PSI) 3000
Rated Flow(GPM) 12
Temperature Range(std seals) -20℃ to +120℃
Standard seal material is NBR



LSQ-S10 Series couplings feature:
1. Poppet valves available to prevent uncoupled leakage.
2. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3. Critical parts are hardened for durability.
4. Dependable ball-locking mechanism holds the mating halves together.
5. Socked and plug are precision machined from solid bar stock.
6. Compatible with FASTER VF Series.GROMELLE Q-9000 Series.

Performance: Test Fluid:Oil-200SUS,1GPM=3.78L/Min,1PSID=0.0069MPa.

Close Type Hydraulic Trailer Brake Coupling Metric Thread Preventing Uncoupled Leakage

LSQ-S10 series (1/2")

Close Type Hydraulic Trailer Brake Coupling Metric Thread Preventing Uncoupled Leakage

PARTNO. T HEX1 HEX2 ¢D L LS LP
LSQ-S10-04 G1/2 27 32 44 88.5 55.5 48
