Product Details
Place of Origin: Ningbo,China(Mainland)
Brand Name: SONGQIAO
Model Number: LSQ-S10
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests.
Delivery Time: within 30 days or as per customers' requirement.
Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop
Standard: |
Compatible With FASTER VF Series, Poppet Valve |
WP: |
Working Pressures To 3,000 Psi (207 Bar) |
Material: |
Carbon Steel |
Size: |
1/2' |
Thread: |
BSPP, Metric |
Connection: |
Locking Balls |
Standard: |
Compatible With FASTER VF Series, Poppet Valve |
WP: |
Working Pressures To 3,000 Psi (207 Bar) |
Material: |
Carbon Steel |
Size: |
1/2' |
Thread: |
BSPP, Metric |
Connection: |
Locking Balls |
Trailer Brake Couplings, ISO 5676 Standard, Hydraulic Couplings, Used on Agricultural machineries
Descripton:

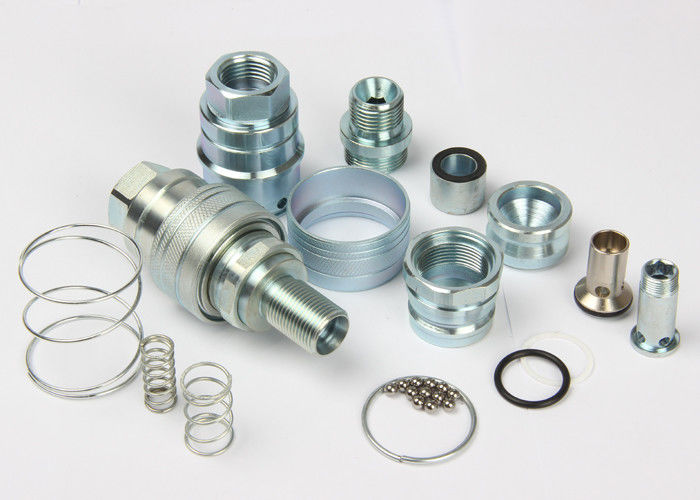

LSQ-S10 close type hydraulic quick coupling(steel)
Applications: Agricultural machineries
Specifications:
| Body Size(in) | 1/2 |
| Rated Pressure(PSI) | 3000 |
| Rated Flow(GPM) | 12 |
| Temperature Range(std seals) | -20℃ to +120℃ |
| Standard seal material is NBR | |
Performance: Test Fluid:Oil-200SUS,1GPM=3.78L/Min,1PSID=0.0069MPa.
LSQ-S10 series (1/2")
| PARTNO. | T | HEX1 | HEX2 | ￠D | L | LS | LP |
| LSQ-S10-04 | G1/2 | 27 | 32 | 44 | 88.5 | 55.5 | 48 |
