| Standard: | Compatible With FASTER CVE Series, Thread Locked | WP: | Working Pressures To 4,000 Psi (280 Bar) |
|---|---|---|---|
| Material: | Carbon Steel | Size: | 3/4' - 1' |
| Thread: | BSPP, BSPT, NPT, NPTF, SAE | Connection: | Thread Lock |
| High Light: | Simple Operation female Threaded Quick Connect,threaded female Screw Coupling Connect Hydraulic,3/4'' quick release hydraulic connectors |
||

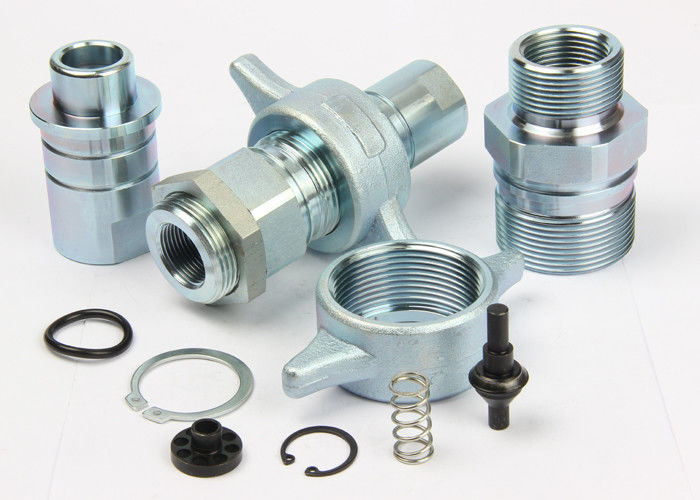

KZE-BC Threaded Connection Type, Connect under Pressure, Hydraulic Quick Couplings
Descripton:
KZE-BC thread type hydraulic quick coupling(steel)
Applications: KZE-BC can widely used on dump tracks, Buses, Agricultural machinery and mobile contruction equipment.
Specifications:
| Body Size(in) | 3/4 | 1" |
| Rated Pressure(PSI) | 4000 | 3000 |
| Rated Flow(GPM) | 25 | 50 |
| Temperature Range(std seals) | -20℃ to +120℃ | |
| Standard seal material NBR | ||
KZE-BC Features:
1. KZE-BC is a thread-to-connect coupling, socket with wing nut can operate by manual with left over pressure.
2. Compatible with FASTER CVE series, HOLMBURY VCR series.
Performance: Test Fluid:Oil-200SUS,1GPM=3.78L/Min,1PSID=0.0069MP.
KZE-BC Series (3/4",1")
KZE-BC series (3/4",1")
| PARTNO. | T | ￠D | HEX1 | HEX2 | L | LS | LP |
| KZE-BC-06 | G3/4 | 115.4 | 46 | 33 | 132.5 | 78 | 78 |
| KZE-BC-08 | G1 | 115.4 | 55 | 40 | 145 | 83 | 83 |
