Light Weight Female Threaded Coupling Parker 6100 Series Connect Under Pressure

China Light Weight Female Threaded Coupling Parker 6100 Series Connect Under Pressure supplier

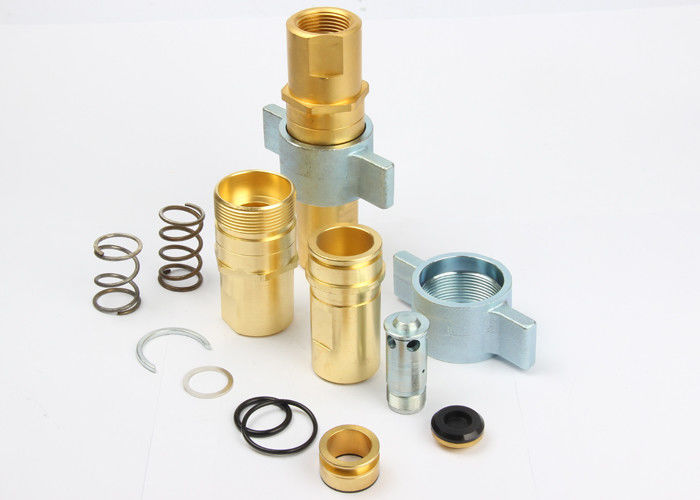

Large Image :  Light Weight Female Threaded Coupling Parker 6100 Series Connect Under Pressure

Product Details:

Place of Origin: Ningbo,China(Mainland)
Brand Name: SONGQIAO
Model Number: KZE-BB

Payment & Shipping Terms:

Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests.
Delivery Time: within 30 days or as per customers' requirement.
Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop
Contact Now
Detailed Product Description
Standard: Compatible With PARKER 6100 Series, Thread Locked WP: Working Pressures To 3,000 Psi (207 Bar)
Material: Brass Size: 3/4' - 1-1/4'
Thread: BSPP, BSPT, NPT, NPTF, SAE Connection: Thread Lock

KZE-BB Threaded Connect Type, Parker 6100 Series, Connect under Pressure, Hydraulic Quick Couplings



Descripton:


KZE-BB Thread type hydraulic quick coupling (brass)
Applications:

• Submersible pumps
• Oil field equipment
• Dump trailers
• Engine test stands
• Bulk liquid transfer


Specifications:

Body Size(in) 3/4 1 1-1/4
Rated Pressure(PSI) 3000 3000 3000
Rated Flow(GPM) 28 50 88
Temperature Range(std seals) -20℃ to +120℃
Standard seal material NBR



KZE-BB Features:
1. KZE-BB Heavy-dust wing nut is ruggedly built specifically to withstand the hammer blows commonly used to tighten and loosen thin coupler.
2. Assembled valve seal can permits full pressure connect and disconnect, without seal washout.
3. The flush face valve keeps air inclusion and spillage to a minimum
4. Corrosion resistant brass coupling, makes it compatible with a widely range and provides widely functionality.
5. Compatible with PARKER 6100 series, FASTER FB series, AEROQUIP 5100 series, HANSEN 96 series.
Performance: Test Fluid:Oil-200SUS,1GPM=3.78L/Min,1PSID=0.0069MPa.



Light Weight Female Threaded Coupling Parker 6100 Series Connect Under Pressure

KZE-BB series (1")



Light Weight Female Threaded Coupling Parker 6100 Series Connect Under Pressure

PART NO. T D HEX1 HEX2 L LS LP
KZE-BB-06 NPT3/4" 106 33.5 29 133.5 66 79.2
KZE-BB-08 NPT1" 110 39.5 36 157 83.5 90
KZE-BB-10 NPT1-1/4” 132 48 45 164 89 94
