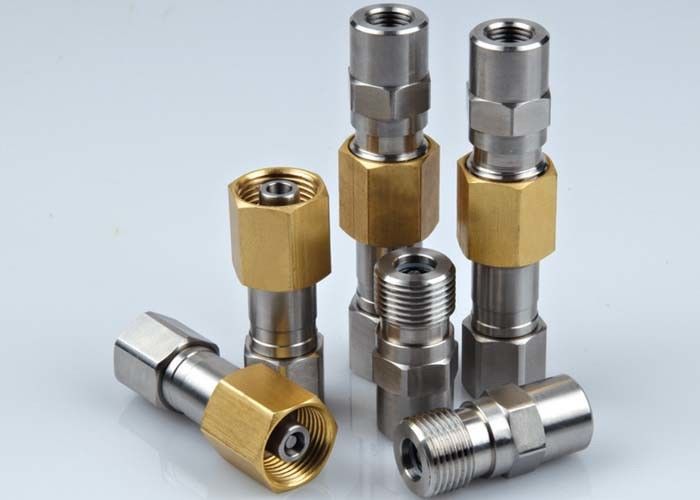

Portable Straight Thread Coupling Parker 1141 Interchange In Stainless Steel 316 / Brass

Portable Straight Thread Coupling Parker 1141 Interchange In Stainless Steel 316 / Brass
Portable Straight Thread Coupling Parker 1141 Interchange In Stainless Steel 316 / Brass

Large Image :  Portable Straight Thread Coupling Parker 1141 Interchange In Stainless Steel 316 / Brass

Product Details:
Place of Origin: Ningbo,China(Mainland)
Brand Name: SONGQIAO
Model Number: LSQ-1141
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests.
Delivery Time: within 30 days or as per customers' requirement.
Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop
Detailed Product Description
Standard: Compatible With PARKER 1141 Series, Thread Locked WP: Working Pressures To 10,000 Psi (700 Bar)
Material: Stainless Steel 316 And Brass Size: 1/4'
Thread: BSPP, BSPT, NPT, NPTF, SAE Connection: Thread Lock
High Light:

female threaded coupling

,

threaded female coupling

LSQ-1141 Threaded Connection Type, Parker 1141 Interchange, Hydraulic Couplings in Stainless Steel 316 and Brass



Descripton:

LSQ-1141 thread locked type hydraulic quick coupling(stainless steel 316+ brass)



Applications
Portable hydraulic jacks.

Body Size(in) 1/4
Rated Pressure(PSI) 10.000
Rated Flow(GPM) 3
Temperature Range(std seals) -20℃ to +120℃
Standard seal material NBR



Features
316 Stainless steel body
Brass locking sleeve
Thread locking system help prevent coupling from accidentally disconnecting.
Small diameter mating seal helps keep separating forces to a minimum,allowing for easier connect and disconnect at pressure up to 5000PSI.
Interchangeability: Parker 1141 Series.
Portable Straight Thread Coupling Parker 1141 Interchange In Stainless Steel 316 / Brass 0



PART NO. T HEX1 HEX2 HEX3 L LS LP
LSQ-1141 NPT1/4 22 25 22 106.8 50.7 69.9
