Thread Lock Hydraulic Quick Release Coupling KZE-BC Connect Under Pressure

Product Details

Place of Origin: Ningbo,China(Mainland)

Brand Name: SONGQIAO

Model Number: KZE-BC

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: standard exporting package or as per customers' requests.

Delivery Time: within 30 days or as per customers' requirement.

Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop

Get Best Price
High Light:

threaded female coupling

,

straight thread coupling

Standard:
Compatible With FASTER CVE Series, Thread Locked
WP:
Working Pressures To 4,000 Psi (280 Bar)
Material:
Carbon Steel
Size:
3/4' - 1'
Thread:
BSPP, BSPT, NPT, NPTF, SAE
Connection:
Thread Lock
Standard:
Compatible With FASTER CVE Series, Thread Locked
WP:
Working Pressures To 4,000 Psi (280 Bar)
Material:
Carbon Steel
Size:
3/4' - 1'
Thread:
BSPP, BSPT, NPT, NPTF, SAE
Connection:
Thread Lock

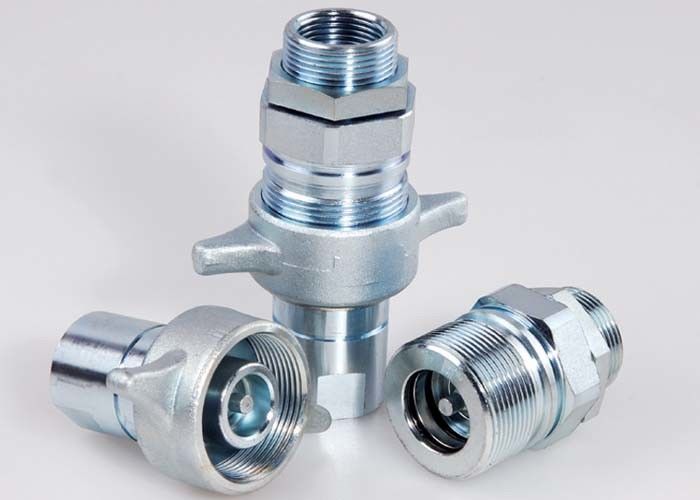

Thread Lock Hydraulic Quick Release Coupling KZE-BC Connect Under Pressure

KZE-BC Threaded Connection Type, Connect under Pressure, Hydraulic Couplings in Carbon Steel, Chrome Three



Descripton:


KZE-BC thread type hydraulic quick coupling(steel)
Applications: KZE-BC can widely used on dump tracks, Buses, Agricultural machinery and mobile contruction equipment.


Specifications:

Body Size(in) 3/4 1"
Rated Pressure(PSI) 4000 3000
Rated Flow(GPM) 25 50
Temperature Range(std seals) -20℃ to +120℃
Standard seal material NBR



KZE-BC Features:
1. KZE-BC is a thread-to-connect coupling, socket with wing nut can operate by manual with left over pressure.
2. Compatible with FASTER CVE series, HOLMBURY VCR series.
Performance: Test Fluid:Oil-200SUS,1GPM=3.78L/Min,1PSID=0.0069MP.
KZE-BC Series (3/4",1")

Thread Lock Hydraulic Quick Release Coupling KZE-BC Connect Under Pressure 0

KZE-BC series (3/4",1")

Thread Lock Hydraulic Quick Release Coupling KZE-BC Connect Under Pressure 1

PARTNO. T ¢D HEX1 HEX2 L LS LP
KZE-BC-06 G3/4 115.4 46 33 132.5 78 78
KZE-BC-08 G1 115.4 55 40 145 83 83
