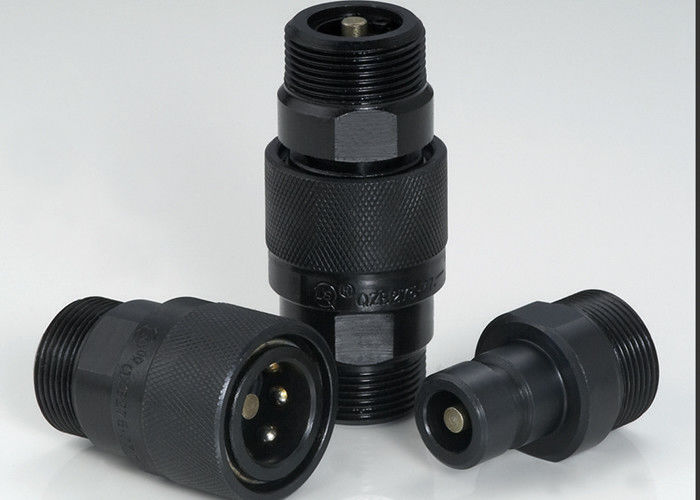

Single Handed Operation Hydraulic Connectors Fittings Black Q/ZB275-77 Metric Thread

Single Handed Operation Hydraulic Connectors Fittings Black Q/ZB275-77 Metric Thread
Single Handed Operation Hydraulic Connectors Fittings Black Q/ZB275-77 Metric Thread

Large Image :  Single Handed Operation Hydraulic Connectors Fittings Black Q/ZB275-77 Metric Thread

Product Details:
Place of Origin: Ningbo, China(Mainland)
Brand Name: SONGQIAO
Model Number: Q/ZB275-77
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests
Delivery Time: within 30 days or as per customers' requirement
Supply Ability: 50,000 pcs/day, according the capacity of the assembly workshop
Detailed Product Description
Standard: Compatible With Q/ZB275-77 WP: Working Pressure To 5000 Psi (345 Bar)
Material: Carbon Steel Size: M16*1.5-M68*2
Thread: Metric Connection: Locking Balls
High Light:

hydraulic line quick connect

,

hydraulic quick release coupling

Q/ZB275-77 Chinese Type Hydraulic Couplings in Carbon Steel, Black Treatment



Descripton:

Q/ZB275-77 close type hydraulic quick coupling(steel)
Applications: The Q/ZB275-77 Series brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.


Specifications:

Body Size(in) M16*1.5 M22*1.5 M27*1.5 M30*1.5 M36*2 M42*2 M52*2 M60*2 M68*2
Rated Pressure(PSI) 5000 5000 5000 5000 4000 4000 3000 2000 2000
Temperature Range(std seals) -20℃ to +120℃
Temperature Range(std seals) NBR



Socket

Single Handed Operation Hydraulic Connectors Fittings Black Q/ZB275-77 Metric Thread 0

PARTNO. LS ¢D HEX1 A T
Q/ZB275-77 06SM 44 28 19 13 M16*1.5
Q/ZB275-77 08SM 46 31 22 13 M22*1.5
Q/ZB275-77 10SM 52 35 27 13 M27*1.5
Q/ZB275-77 15SM 56 39.6 30 16 M30*1.5
Q/ZB275-77 20SM 65 48 36 16.5 M36*2
Q/ZB275-77 25SM 78 55 46 20 M42*2
Q/ZB275-77 32SM 84 64.5 55 22 M52*2
Q/ZB275-77 40SM 93 78 65 26 M60*2
Q/ZB275-77 50SM 99 82 70 30 M68*2



Plug

Single Handed Operation Hydraulic Connectors Fittings Black Q/ZB275-77 Metric Thread 1

PARTNO. LP C HEX2 A T
Q/ZB275-77 06PM 40 18 19 13 M16*1.5
Q/ZB275-77 08PM 41 19 22 13 M22*1.5
Q/ZB275-77 10PM 46 22 27 13 M27*1.5
Q/ZB275-77 15PM 52.5 24 30 16 M30*1.5
Q/ZB275-77 20PM 58.5 29 36 16.5 M36*2
Q/ZB275-77 25PM 65.5 31 46 20 M42*2
Q/ZB275-77 32PM 79 36 55 22 M52*2
Q/ZB275-77 40PM 89.5 39.5 65 26 M60*2
Q/ZB275-77 50PM 96.5 41 70 30 M68*2
