1/4" To 1" Interchangeable Hydraulic Check Valve Ruggedly Built With Changeable Spring

Product Details

Place of Origin: Ningbo, China(Mainland)

Brand Name: SONGQIAO

Model Number: LSQ-CV

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Packaging Details: standard exporting package or as per customers' requests

Delivery Time: within 30 days or as per customers' requirement

Supply Ability: 50,000 pcs/day, according the capacity of the assembly workshop

Get Best Price
High Light:

LSQ-CV hydraulic inline check valve

,

Carbon Steel high pressure check valve

,

1" Interchangeable Hydraulic Check Valve

Standard:
Compatible With Check Valve
WP:
Working Pressure To 5000psi (345 Bar)
Material:
Carbon Steel
Size:
1/4"-1"
Standard:
Compatible With Check Valve
WP:
Working Pressure To 5000psi (345 Bar)
Material:
Carbon Steel
Size:
1/4"-1"

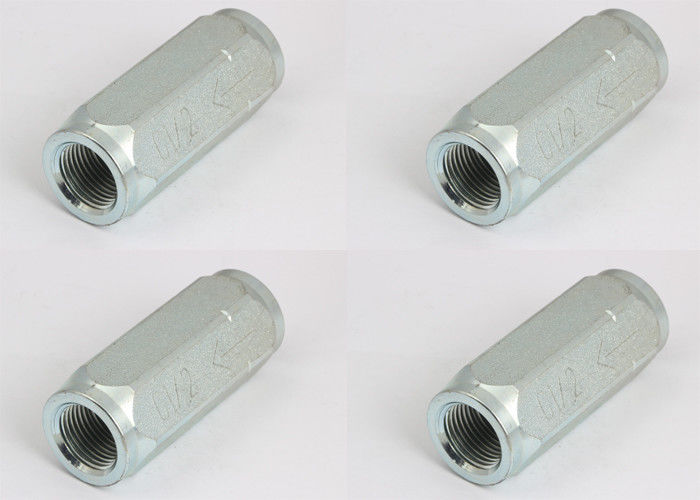

1/4" To 1" Interchangeable Hydraulic Check Valve Ruggedly Built With Changeable Spring

Hydraulic Check Valve in Carbon Steel, with a pressure rating range up to 5000 psi



LSQ-CV Series offers basic, workhorse check valves – ruggedly built, readily available and reasonably priced. They are in-line valves, available in sizes 1/4” to 2”, with a pressure rating range up to 5000 psi, and flow capacities to 300 GPM.



Features

1. All-steel construction–no internal seals or gaskets to wear out.

2. Available in a variety of standard and non-standard crack pressures.



Descripton:

Body Size(in) 1/4 3/8 1/2 3/4 1
Rated Pressure(PSI) 5000 4000 4000 3000 3000
Rated Flow(GPM) 3 6 12 28 50
Temperature Range(std seals) -20℃to+120℃

1/4" To 1" Interchangeable Hydraulic Check Valve Ruggedly Built With Changeable Spring 0



PART NO. T L HEX1
LSQ-CV-02 G1/4 50.7 19
LSQ-CV-03 G3/8 62.2 24
LSQ-CV-04 G1/2 79.2 30
LSQ-CV-06 G3/4 82.9 36
LSQ-CV-08 G1 106.1 45
