High Flow Hydraulic Trailer Brake Coupling Used On Agricultural Machineries

China High Flow Hydraulic Trailer Brake Coupling Used On Agricultural Machineries supplier

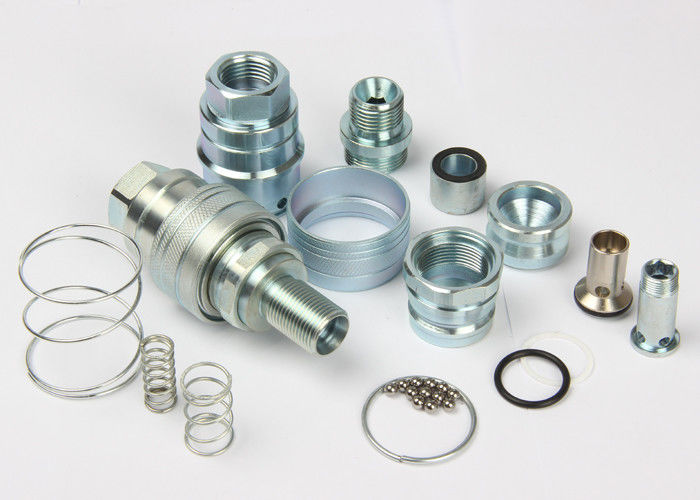

Large Image :  High Flow Hydraulic Trailer Brake Coupling Used On Agricultural Machineries

Product Details:

Place of Origin: Ningbo,China(Mainland)
Brand Name: SONGQIAO
Model Number: LSQ-S10

Payment & Shipping Terms:

Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests.
Delivery Time: within 30 days or as per customers' requirement.
Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop
Contact Now
Detailed Product Description
Standard: Compatible With FASTER VF Series, Poppet Valve WP: Working Pressures To 3,000 Psi (207 Bar)
Material: Carbon Steel Size: 1/2'
Thread: BSPP, Metric Connection: Locking Balls

Trailer Brake Couplings, ISO 5676 Standard, Hydraulic Couplings, Used on Agricultural machineries



Descripton:

LSQ-S10 close type hydraulic quick coupling(steel)


Applications: Agricultural machineries

Specifications:

Body Size(in) 1/2
Rated Pressure(PSI) 3000
Rated Flow(GPM) 12
Temperature Range(std seals) -20℃ to +120℃
Standard seal material is NBR



Performance: Test Fluid:Oil-200SUS,1GPM=3.78L/Min,1PSID=0.0069MPa.

High Flow Hydraulic Trailer Brake Coupling Used On Agricultural Machineries

LSQ-S10 series (1/2")

High Flow Hydraulic Trailer Brake Coupling Used On Agricultural Machineries

PARTNO. T HEX1 HEX2 ¢D L LS LP
LSQ-S10-04 G1/2 27 32 44 88.5 55.5 48
