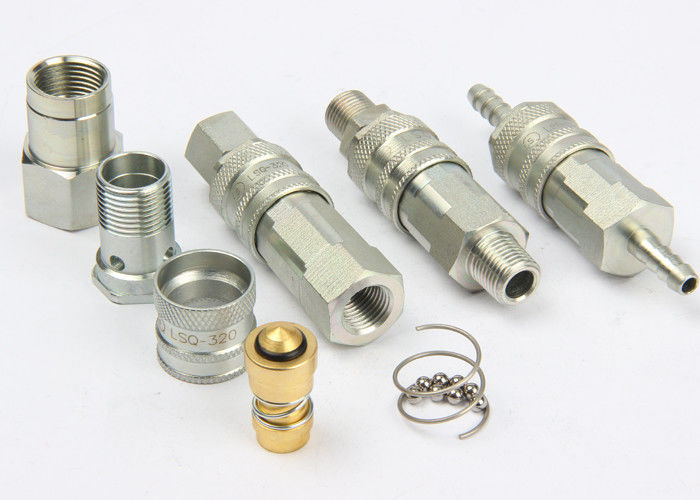

Small Size Pneumatic Quick Connect , 7.6mm High Pressure Quick Couplings

Small Size Pneumatic Quick Connect , 7.6mm High Pressure Quick Couplings
Small Size Pneumatic Quick Connect , 7.6mm High Pressure Quick Couplings

Large Image :  Small Size Pneumatic Quick Connect , 7.6mm High Pressure Quick Couplings

Product Details:
Place of Origin: Ningbo, China(Mainland)
Brand Name: SONGQIAO
Model Number: LSQ-320
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests
Delivery Time: within 30 days or as per customers' requirement
Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop
Detailed Product Description
Standard: Compatible With CEJN 320 Series, And RECTUS 25KA Series Material: Carbon Steel
Size: 1/8"-3/8" WP: 1.6Mpa
High Light:

Small Size Pneumatic Quick Connect

,

7.6mm High Pressure Quick Couplings

,

CEJN 320 quick connect air couplings

LSQ-320 CEJN 320 Type, Pneumatic Quick Connect Couplings in Carbon Steel, Chrome Three



Descripton:

Features: Valid diameter 7.6mm, European standard
Interchangeability: CEJN 320 Series, Rectus 25KA and 26KA Series
Working pressure: 1.6Mpa
Working temperature: -20℃+120℃
Small Size Pneumatic Quick Connect , 7.6mm High Pressure Quick Couplings 0

PART NO. LS ¢D HEX1 A T d
LSQ-320-02SM 63.2 23.3 20 13 ZG1/4 ¢7.8
LSQ-320-03SM 61.2 23.3 20 13 ZG3/8 ¢11.3


Small Size Pneumatic Quick Connect , 7.6mm High Pressure Quick Couplings 1

PART NO. LP C HEX1 A T d
LSQ-320-02PM 39.5 20.5 17 13 ZG1/4 ¢7.5
LSQ-320-03PM 40 20.5 17 13 ZG3/8 ¢7.5

Small Size Pneumatic Quick Connect , 7.6mm High Pressure Quick Couplings 2

PART NO. LP C HEX1 A T d
LSQ-320-02SF 60.2 23.3 20 13 G1/4 ¢14
LSQ-320-03SF 60.2 23.3 22 12 G3/8 ¢14

Small Size Pneumatic Quick Connect , 7.6mm High Pressure Quick Couplings 3

PART NO. LS ¢D HEX1 A T d
LSQ-320-02PF 36.5 20.5 17 13 G1/4 ¢7.5
LSQ-320-03PF 36.5 20.5 19 13 G3/8 ¢7.5

Small Size Pneumatic Quick Connect , 7.6mm High Pressure Quick Couplings 4

PART NO. LS ¢D HEX1 A ¢T d
LSQ-320-01SH 67.7 23.3 20 20 7 ¢4
LSQ-320-02SH 72.7 23.3 20 25 9 ¢5.5
LSQ-320-03SH 72.7 23.3 20 25 11 ¢7.5


Small Size Pneumatic Quick Connect , 7.6mm High Pressure Quick Couplings 5

PART NO. LP C ¢CP A ¢T d
LSQ-320-01PH 43 20.5 15 20 7 ¢7.5
LSQ-320-02PH 48 20.5 15 25 9 ¢7.5
LSQ-320-03PH 48 20.5 15 25 11 ¢7.5
