| Standard: | Compatible With NITTO HI-CUPLA Series, And CEJN 315 Series | Material: | Carbon Steel |
|---|---|---|---|
| Size: | 1/8"-3/8" | WP: | 1.6Mpa |
| High Light: | pneumatic air connectors,pneumatic quick connect |
||

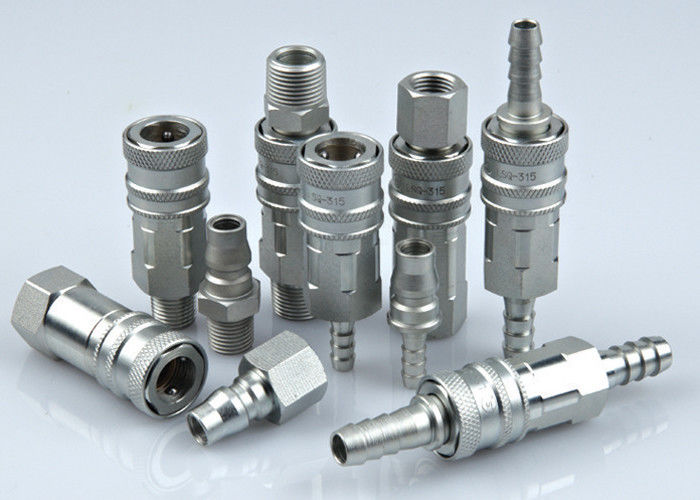

LSQ-315 CEJN 315 Type, Pneumatic Couplings in Carbon Steel, Chrome Three
Descripton:
Features: Valid diameter 7.5mm, Japanese standard
Advantages: large flow valve, single hand operation.
Application: pneumatic tools, automotive, machinery equipment.
Interchangeability: Nitto HI-CUPLA Series, CEJN 315 Series, Rectus 13KA Series
Working pressure: 1.6Mpa
Working temperature: -20℃+120℃
>
| PART NO. | LS | ￠D | HEX1 | A | T | d |
| LSQ-315-02SM | 62.8 | 23.3 | 20 | 13 | ZG1/4 | ￠7.8 |
| LSQ-315-03SM | 60.8 | 23.3 | 20 | 13 | ZG3/8 | ￠11.3 |
>
| PART NO. | LP | C | HEX1 | A | T | d |
| LSQ-315-02PM | 39.5 | 20.5 | 17 | 13 | ZG1/4 | ￠7.5 |
| LSQ-315-03PM | 40 | 20.5 | 17 | 13 | ZG3/8 | ￠7.5 |
>
| PART NO. | LS | ￠D | HEX1 | A | T | d |
| LSQ-315-02SF | 57.7 | 23.3 | 20 | 13 | G1/4 | ￠14 |
| LSQ-315-03SF | 57.7 | 23.3 | 22 | 12 | G3/8 | ￠14 |
>
| PART NO. | LP | C | HEX1 | A | T | d |
| LSQ-315-02PF | 36.5 | 20.5 | 17 | 13 | G1/4 | ￠7.5 |
| LSQ-315-03PF | 36.5 | 20.5 | 19 | 13 | G3/8 | ￠7.5 |
>
| PART NO. | LS | ￠D | HEX1 | A | ￠T | d |
| LSQ-315-01SH | 67.7 | 23.3 | 20 | 20 | 7 | ￠4 |
| LSQ-315-02SH | 72.7 | 23.3 | 20 | 25 | 9 | ￠5.5 |
| LSQ-315-03SH | 72.7 | 23.3 | 20 | 25 | 11 | ￠7.5 |
| PART NO. | LP | D | ￠CP | A | ￠T | d |
| LSQ-315-01PH | 43 | 20.5 | 15 | 20 | 7 | ￠7.5 |
| LSQ-315-02PH | 48 | 20.5 | 15 | 25 | 9 | ￠7.5 |
| LSQ-315-03PH | 48 | 20.5 | 15 | 25 | 11 |
￠7.5 |
