Swiss Type Air Quick Disconnect Couplings LAO Suitable For Restricted Space

Swiss Type Air Quick Disconnect Couplings LAO Suitable For Restricted Space
Swiss Type Air Quick Disconnect Couplings LAO Suitable For Restricted Space

Large Image :  Swiss Type Air Quick Disconnect Couplings LAO Suitable For Restricted Space

Product Details:
Place of Origin: Ningbo,China(Mainland)
Brand Name: SONGQIAO
Model Number: LAO
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests.
Delivery Time: within 30 days or as per customers' requirement.
Payment Terms: L/C, T/T
Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop
Detailed Product Description
Material: Brass Standard: Compatible With Parker 50 Series, Rectus 22KA Series CEJN 300 Series.
WP: Working Pressures To 1MPA WT: -20℃ To +120℃
High Light:

air quick disconnect couplings

,

parker quick disconnect couplings

LAO Swiss Type, Pneumatic couplings in Brass



Descripton:

LAO SINGLE HANDED AND SEMIAUTOMATIC TYPE QUICK COUPLING(STEEL)
→ Features:Single operation, it is widely used in switzerland Market.
→ Advantages: Single operation, steel valve locking system.
→ Application: pneumatic tools, producing and assembly lines, machinery equipments.
→ Interchangeability: Parker 50 series, Rectus 22KA series CEJN 300 Series.
→ Working Pressure: 1.0Mpa.
→ Working Temperature: -20℃ to +120℃.

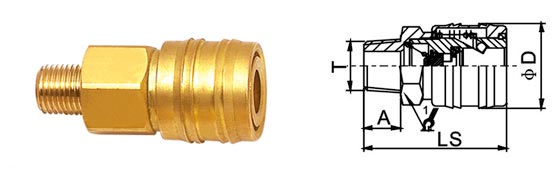

Swiss Type Air Quick Disconnect Couplings LAO Suitable For Restricted Space 0

PARTNO. LS ¢D HEX1 A T
LAO-02SM 46 26.8 22 11.5 1/4
LAO-03SM 47 26.8 22 12.5 3/8

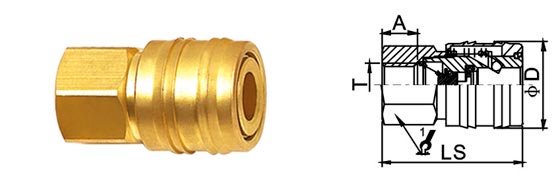

Swiss Type Air Quick Disconnect Couplings LAO Suitable For Restricted Space 1

PARTNO. LS ¢D HEX1 A T
LAO-02SF 43.5 26.8 22 11 1/4
LAO-03SF 45.5 26.8 22 11 3/8

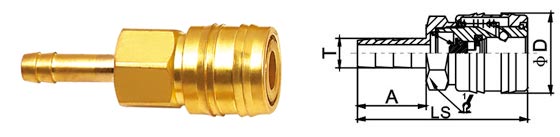

Swiss Type Air Quick Disconnect Couplings LAO Suitable For Restricted Space 2

PARTNO. LS ¢D HEX1 A T
LAO-02SH 57.5 26.8 22 25 7
LAO-03SH 57.5 26.8 22 25 9

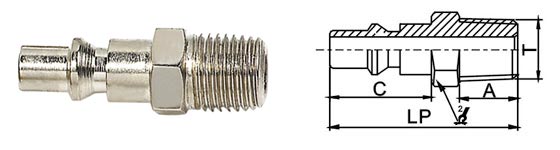

Swiss Type Air Quick Disconnect Couplings LAO Suitable For Restricted Space 3

PARTNO. LP C HEX2 A T
LAO-02PM 40.5 22 14 11.5 1/4
LAO-03PM 40.5 22 17 12.5 3/8

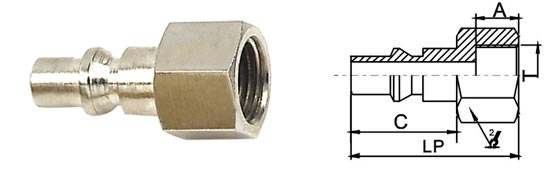

Swiss Type Air Quick Disconnect Couplings LAO Suitable For Restricted Space 4

PARTNO. LP C HEX2 A T
LAO-02PF 35 22 17 9 1/4
LAO-03PF 36 22 19 11 3/8

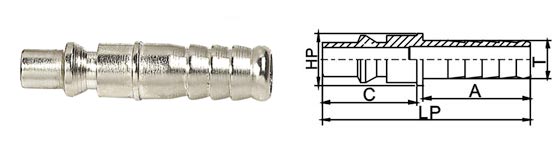

Swiss Type Air Quick Disconnect Couplings LAO Suitable For Restricted Space 5

PARTNO. LP C CP A T
LAO-02PH 48.5 22 12 25 7
LAO-03PH 48.5 22 12 25 9
