Light Weight Pneumatic Quick Disconnect Couplings , Air Line Quick Disconnect In Brass

Light Weight Pneumatic Quick Disconnect Couplings , Air Line Quick Disconnect In Brass
Light Weight Pneumatic Quick Disconnect Couplings , Air Line Quick Disconnect In Brass

Large Image :  Light Weight Pneumatic Quick Disconnect Couplings , Air Line Quick Disconnect In Brass

Product Details:
Place of Origin: Ningbo,China(Mainland)
Brand Name: SONGQIAO
Model Number: LSQ-A
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests.
Delivery Time: within 30 days or as per customers' requirement.
Payment Terms: L/C, T/T
Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop
Detailed Product Description
Standard: Chinese Standard WP: Working Pressures To 1MPA
Material: Brass WT: -20℃ To +120℃
High Light:

industrial quick disconnect couplings

,

air quick disconnect couplings

LSQ-A Semi-Automatic type Pneumatic couplings in Brass, Chrome Plated



Descripton:

LSQ-A SIGLEHANDED AND SEMIAUTOMATIC TYPE QUICK COUPLING(BRASS)
→ Features: Single hand operation.
→ Advantages: Small dimensions, light weight, single hand operation,various of connections.
→ Application: pneumatic tools, textile machinery, machinery equipments.
→ Working Pressure:1.0MPa.
→ Working Temperature: -20℃ to +120℃.

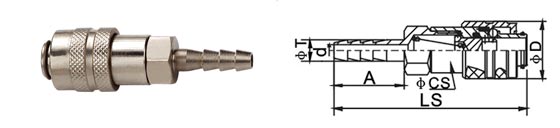

Light Weight Pneumatic Quick Disconnect Couplings , Air Line Quick Disconnect In Brass 0

PARTNO. LS ¢D ¢CS A ¢T d
LSQ-A-01SH 58 19 15 25 7 3
LSQ-A-02SH 58 19 15 25 9 4.8
LSQ-A-03SH 58 19 15 25 11 7
LSQ-A-04SH 57 19 15 25 13.8 10

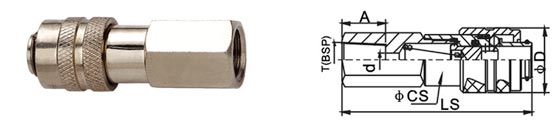

Light Weight Pneumatic Quick Disconnect Couplings , Air Line Quick Disconnect In Brass 1

PARTNO. LS ¢D ¢CS A T(BSP) d
LSQ-A-01SF 43 19 15 10 BSP1/8"28P 6
LSQ-A-02SF 47 19 15 13 BSP1/4"19P 6
LSQ-A-03SF 47 19 15 13 BSP3/8"19P 6

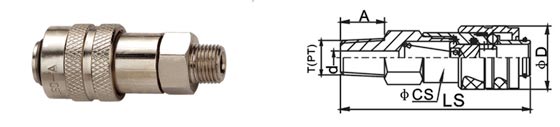

Light Weight Pneumatic Quick Disconnect Couplings , Air Line Quick Disconnect In Brass 2

PARTNO. LS ¢D ¢CS A T(BSP) d
LSQ-A-01SM 49 19 15 9.5 BSPT1/4"28P 5
LSQ-A-02SM 52.5 19 15 13 BSPT3/8"19P 7
LSQ-A-03SM 52.5 19 15 13 BSPT1/2"19P 10

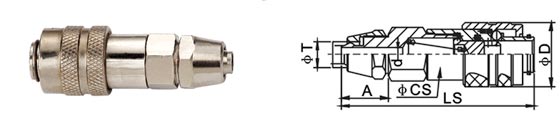

Light Weight Pneumatic Quick Disconnect Couplings , Air Line Quick Disconnect In Brass 3

PARTNO. LS ¢D ¢CS A ¢T d
LSQ-A-01SP 53.5 19 15 14 6*4 2.8
LSQ-A-02SP 54.5 19 15 15 8*5 4
LSQ-A-03SP 56.5 19 15 17 10*6.5 5

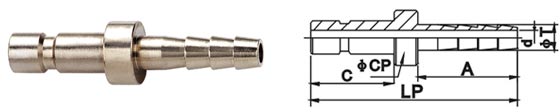

Light Weight Pneumatic Quick Disconnect Couplings , Air Line Quick Disconnect In Brass 4

PARTNO. LP C ¢CP A ¢T d
LSQ-A-01PH 51.5 20.5 13 25 7 3
LSQ-A-02PH 51.5 20.5 13 25 9 5
LSQ-A-03PH 51.5 20.5 13 25 11 7
LSQ-A-04PH 51.5 20.5 16 25 13.8 10


Light Weight Pneumatic Quick Disconnect Couplings , Air Line Quick Disconnect In Brass 5

PARTNO. LP C HEX1 A T(BSP) d
LSQ-A-01PF 33.5 20.5 14 10 BSP1/8"28P 4.8
LSQ-A-02PF 36.5 20.5 17 13 BSP1/4"19P 4.8
LSQ-A-03PF 36.5 20.5 19 13 BSP3/8"19P 4.8

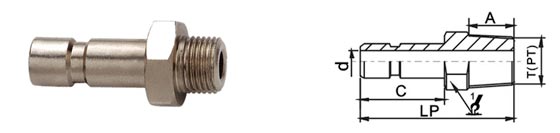

Light Weight Pneumatic Quick Disconnect Couplings , Air Line Quick Disconnect In Brass 6

PARTNO. LP C HEX1 A T(PT) d
LSQ-A-01PM 34.5 20.5 10 9.5 PT1/8"28P 4.8
LSQ-A-02PM 37.5 20.5 14 13 PT1/4"19P 4.8
LSQ-A-03PM 38 20.5 17 11 PT3/8"19P 4.8

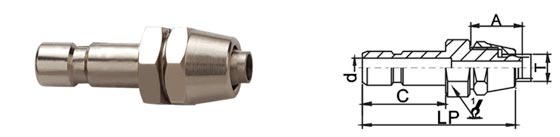

Light Weight Pneumatic Quick Disconnect Couplings , Air Line Quick Disconnect In Brass 7

PARTNO. LP C HEX1 A T d
LSQ-A-01PP 37.5 20.5 12 13 6*4 4.8
LSQ-A-02PP 40 20.5 14 15 8*5 4.8
LSQ-A-03PP 41.5 20.5 14 17 10*6.5 4.8
