Carbon Steel Hydraulic Quick Connect Couplings , LSQ-TM Hydraulic Quick Disconnect Fittings
|
Product Details:
Place of Origin: |
Ningbo, China(Mainland) |
Brand Name: |
SONGQIAO |
Model Number: |
LSQ-TM |
Payment & Shipping Terms:
Minimum Order Quantity: |
negotiable |
Price: |
negotiable |
Packaging Details: |
standard exporting package or as per customers' requests |
Delivery Time: |
within 30 days or as per customers' requirement |
Supply Ability: |
50,000 pcs/day, according the capacity of the assembly workshop |
|
Detailed Product Description
Standard: |
Compatible With TEMA TH Series |
WP: |
Working Pressure To 3000psi (207 Bar) |
Material: |
Carbon Steel |
Size: |
1/2"-1" |
Thread: |
BSPP, BSPT, NPT, NPTF, SAE |
Connection: |
Locking Balls |
LSQ-TM, TEMA TH Type, Hydraulic Quick Action Couplings in Carbon Steel, Chrome Three
Specifications:
Body Size(in) |
1/2 |
3/4 |
1 |
Rated Pressure(PSI) |
3000 |
3000 |
3000 |
Rated Flow(GPM) |
12 |
28 |
50 |
Temperature Range(std seals) |
-20℃ to +120℃ |
Standard seal |
NBR |
LSQ-TM Series couplings feature:
1. Poppet valves available to prevent uncoupled leakage.
2. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3. Critical parts are hardened for durability.
4. Dependable ball-locking mechanism holds the mating halves together.
5. Socked and plug are precision machined from solid bar stock.
6. Compatible with TEMA TH5000 Series.

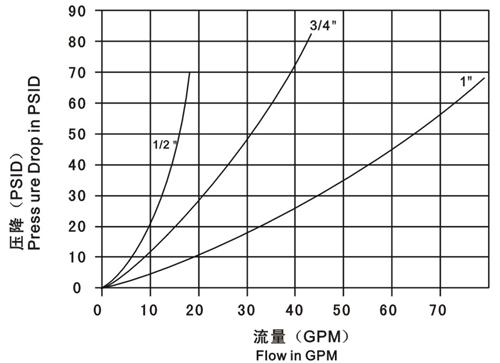

Performance: Test Fluid:Oil-200SUS,1GPM=3.78L/Min,1PSID=0.0069MPa

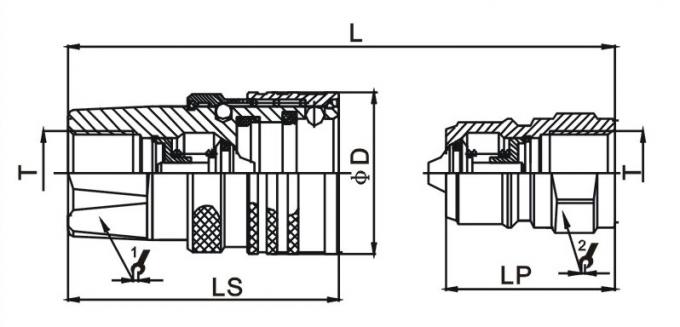

TPL series (1/2")

PARTNO. |
T |
¢D |
HEX1 |
HEX2 |
L |
LS |
LP |
LSQ-TM-04 |
G1/2 |
40 |
S30 |
S27 |
83.4 |
66.7 |
41.5 |
LSQ-TM-06 |
G3/4 |
52 |
S38.3 |
S36 |
94.5 |
76.4 |
47 |
LSQ-TM-08 |
G1 |
62 |
S45 |
S45 |
113.8 |
92.4 |
56.5
|
