Precision Machining Hydraulic Line Quick Connect LSQ-S9 Interchange In SS316

China Zhejiang Songqiao Pneumatic And Hydraulic CO., LTD. certification
Professional company with nice service and high quality and high reputation. Thank you!

—— Sandy

I'm Online Chat Now

Precision Machining Hydraulic Line Quick Connect LSQ-S9 Interchange In SS316

Precision Machining Hydraulic Line Quick Connect LSQ-S9 Interchange In SS316
Precision Machining Hydraulic Line Quick Connect LSQ-S9 Interchange In SS316

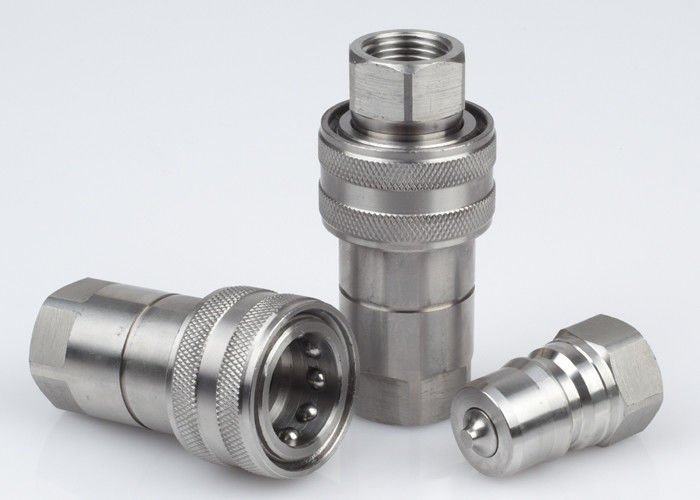

Large Image :  Precision Machining Hydraulic Line Quick Connect LSQ-S9 Interchange In SS316

Product Details:
Place of Origin: Ningbo,China(Mainland)
Brand Name: SONGQIAO
Model Number: LSQ-S2SS
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: standard exporting package or as per customers' requests.
Delivery Time: within 30 days or as per customers' requirement.
Supply Ability: 50,000pcs/day, according the capacity of the assembly workshop
Detailed Product Description
Standard: ISO 7241-1 Series “B”, Poppet Valve WP: Working Pressures To 2,000 Psi (138 Bar)
Material: Stainless Steel SS316 Size: 1/8' - 1'
Thread: BSPP, BSPT, NPT, NPTF, SAE Connection: Locking Balls
High Light:

LSQ-S9 Interchange Hydraulic Line Quick Connect

,

SS316 Hydraulic Line Quick Connect

,

1/8'' Hydraulic Line Quick Connect

LSQ-S2, ISO7241-B Hydraulic Couplings in SS316, Chrome Three





Descripton:


LSQ-S2-SS close type hydraulic quick coupling(stainless steel 316)



Specifications:

Body Size(in) 1/8 1/4 3/8 1/2 3/4 1
Rated Pressure(PSI) 2000 2000 1500 1500 1000 2000
Rated Flow(GPM) 1 3 6 12 28 50
Temperature Range(std seals) -20℃ to +180℃
Stander seal material VITON


LSQ-S2-SS Series couplings feature:
1. Poppet valves available to prevent uncoupled leakage.
2. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3. Dependable ball-locking mechanism holds the mating halves together.
4. Socket and plug are precision machined from solid bar stock.
5. LSQ-S2-SS series conforms to the standard of ISO 7241-B.
6. Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series


Performance: Test Fluid:Oil-200SUS.1GPM=3.78L/Min,1PSID=0.0069MPa.

Precision Machining Hydraulic Line Quick Connect LSQ-S9 Interchange In SS316 0
LSQ-S2-SS Series(1/4",3/8",1/2",3/4",1")

Socket

Precision Machining Hydraulic Line Quick Connect LSQ-S9 Interchange In SS316 1


ISO PARTNO. LS ¢D HEX1 A T
5 LSQ-S2-SS-01SF 50 24 17 10 G1/8 NPT1/8
6.3 LSQ-S2-SS-02SF 58 28.5 19 13 G1/4 NPT1/4
10 LSQ-S2-SS-03SF 65 35 24 13 G3/8 NPT3/8
12.5 LSQ-S2-SS-04SF 73.4 42 30 17 G1/2 NPT1/2
20 LSQ-S2-SS-06SF 92 54 36 22 G3/4 NPT3/4
25 LSQ-S2-SS-08SF 103 65 41 23 G1 NPT1


Plug
Precision Machining Hydraulic Line Quick Connect LSQ-S9 Interchange In SS316 2


ISO PARTNO. LP d C HEX2 A T
5 LSQ-S2-SS-01PF 31 10.8 19 14 10 G1/8 NPT1/8
6.3 LSQ-S2-SS-02PF 36 14.2 22.8 19 13 G1/4 NPT1/4
10 LSQ-S2-SS-03PF 40 19 25 24 13 G3/8 NPT3/8
12.5 LSQ-S2-SS-04PF 46.5 23.5 28 27 17 G1/2 NPT1/2
20 LSQ-S2-SS-06PF 56 31.5 36 36 22 G3/4 NPT3/4
25 LSQ-S2-SS-08PF 63 37.8 35.5 41 23

G1" NPT1"


Coupled

Precision Machining Hydraulic Line Quick Connect LSQ-S9 Interchange In SS316 3

ISO PARTNO. L ¢D HEX1 HEX2 T
5 LSQ-S2-SS-01 62.5 24 17 14 G1/8 NPT1/8
6.3 LSQ-S2-SS-02 72.2 28.5 19 19 G1/4 NPT1/4
10 LSQ-S2-SS-03 80.5 35 24 24 G3/8 NPT3/8
12.5 LSQ-S2-SS-04 91.5 42 30 27 G1/2 NPT1/2
20 LSQ-S2-SS-06 112.5 54 36 36 G3/4 NPT3/4
25 LSQ-S2-SS-08 126.5 65 41 41 G1 NPT1
