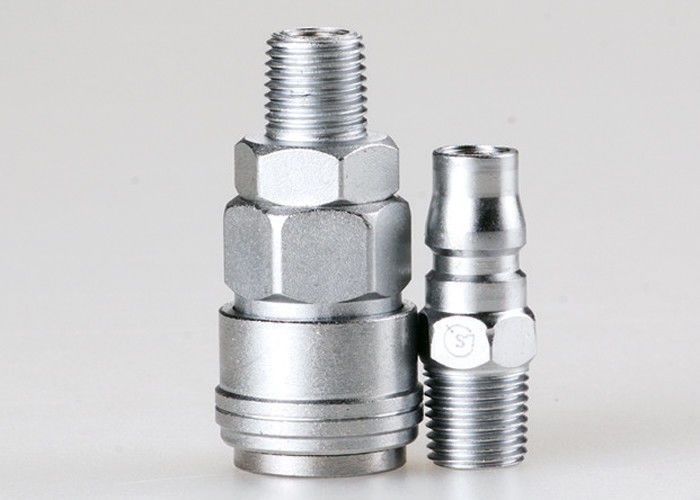

LSQ-AA Nitto Hi-Cupla, Semi-Automatic Type, Pneumatic Couplings in Carbon Steel, Chrome Three
Descripton:
LSQ-AA single handed and semi-autcmatic type quick coupling(steel)
→ Features: Single hand operation.
→ Advantages: single hand operation, light weight, high flow valve, various of connections.
→ Application: pneumatic tools, automotive, compressed air, machinery equipment and compressor.
→ Interchangeability: Nitto HI-CUPLA series, CEJN 315 Series. Rectus 13KA series.
→ Working Pressure:1.0MPa.
→ Working Temperature: -20℃ to +120℃.

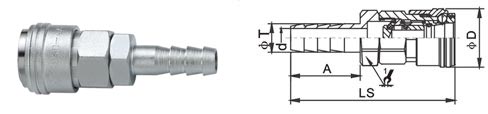

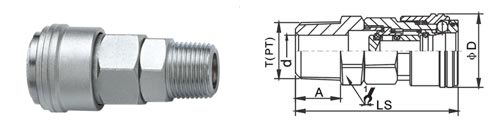

| PARTNO. | LS | ￠D | HEX1 | A | ￠T | d |
| LSQ-AA-01SH | 64.5 | 26.5 | 19 | 20 | 7 | 4 |
| LSQ-AA-02SH | 69.5 | 26.5 | 19 | 25 | 9 | 5 |
| LSQ-AA-03SH | 69.5 | 26.5 | 19 | 25 | 11 | 7 |

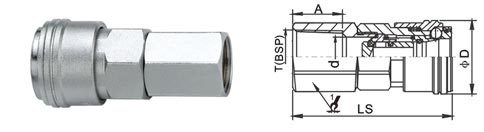

| PARTNO. | LS | ￠D | HEX1 | A | T(BSP) | d |
| LSQ-AA-02SF | 52.5 | 26.5 | 19 | 13 | BSP1/4"19P | 10 |
| LSQ-AA-03SF | 52.5 | 26.5 | 19 | 13 | BSP3/8"19P | 10 |
| LSQ-AA-04SF | 53.5 | 26.5 | 24 | 14 | BSP1/2"14P | 10 |
| PARTNO. | LS | ￠D | HEX1 | A | T(BSP) | d |
| LSQ-AA-02SM | 50 | 26.5 | 19 | 13 | PT1/4"19P | 7 |
| LSQ-AA-03SM | 50 | 26.5 | 19 | 13 | PT3/8"19P | 10 |
| LSQ-AA-04SM | 53.5 | 26.5 | 22 | 16 | PT1/2"14P | 11.5 |
| PARTNO. | LS | ￠D | HEX1 | A | T(BSP) | d |

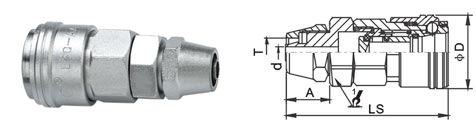

| LSQ-AA-01SP | 50.5 | 26.5 | 19 | 14 | 6*4 | 2.8 |
| LSQ-AA-02SP | 52 | 26.5 | 19 | 15 | 8*5 | 4 |
| LSQ-AA-03SP | 54 | 26.5 | 19 | 17 | 10*6.5 | 5 |
| LSQ-AA-04SP | 55.5 | 26.5 | 19 | 19 | 12*8 | 6.5 |
| PARTNO. | LS | C | CP | A | ￠T | d |
| LSQ-AA-01PH | 47.5 | 20.5 | ￠16 | 20 | 7 | 7.5 |
| LSQ-AA-02PH | 52.5 | 20.5 | ￠16 | 25 | 9 | 7.5 |
| LSQ-AA-03PH | 52.5 | 20.5 | ￠16 | 25 | 11 | 7.5 |

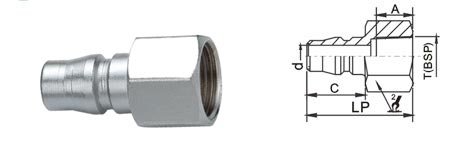

| PARTNO. | LP | C | HEX2 | A | T(BSP) | d |
| LSQ-AA-02PF | 36.5 | 20.5 | 17 | 13 | BSP1/4"19P | 7.5 |
| LSQ-AA-03PF | 36.5 | 20.5 | 19 | 15 | BSP3/8"19P | 7.5 |
| LSQ-AA-04PF | 41.5 | 20.5 | 24 | 16 | BSP1/2"14P | 7.5 |

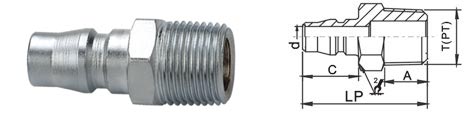

| PARTNO. | LP | C | HEX2 | A | T(PT) | d |
| LSQ-AA-02PM | 36.5 | 20.5 | 14 | 9.5 | PT1/4"19P | 7.5 |
| LSQ-AA-03PM | 39.5 | 20.5 | 17 | 13 | PT3/8"19P | 7.5 |
| LSQ-AA-04PM | 42.5 | 20.5 | 22 | 15 | PT1/2"14P | 7.5 |

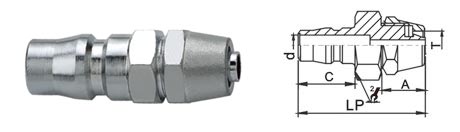

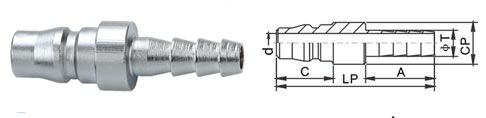

| PARTNO. | LP | C | HEX2 | A | T | d |
| LSQ-AA-01PP | 40 | 20.5 | 14 | 14 | 6*4 | 7.5 |
| LSQ-AA-02PP | 41 | 20.5 | 14 | 15 | 8*5 | 7.5 |
| LSQ-AA-03PP | 43 | 20.5 | 17 | 17 | 10*6.5 | 7.5 |
| LSQ-AA-04PP | 45.5 | 20.5 | 19 | 19 | 12*8 | 7.5 |
